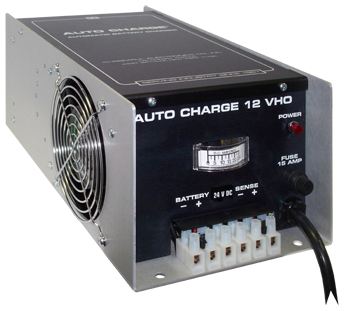

Auto Charge 12 VHO, 091-12VHO-24

The Auto Charge 12 VHO is a fully automatic battery charger with a very high output for applications with multiple batteries within a single battery system.

Description

Remote voltage sensing is provided to compensate the charger output for the voltage drop in the charging wires. It is ruggedly constructed for mounting in a vehicle. May be used for positive and negative ground systems.

  • 24A, 24V charge rating
  • Very High Output Current, Faster Battery Recharge
  • Automatic operation regulates output to a single battery bank
  • Front panel amp meter indicates output current
  • Designed for rigors of emergency vehicle use; heavy duty aluminum case with protective front panel plate and wire strain relief
  • 3 year warranty

Specifications

  • Input: 120 Vac, 50/60 Hz, 10 Amps Max
  • Input Fuse: 20 Amps, Fast Acting
  • Output: 24 Vdc, 20 Amps
  • Output Fuse (Recommended): 40 Amps
  • Charge Indicator: 0-25 Amps
  • Weight: 25 lbs

Dimensions
