Auto Charge 12 091-165-12

The Auto Charge 12 is a fully automatic battery charger for vehicles with a single battery system.

Description

Unique electronic sensing circuits sense the true battery voltage, while eliminating the need for external sense wires. The maximum output of the charger is 12 amperes. When the battery is fully charged, all charging stops. There is no overcharging, and no water boil off. It is ruggedly constructed for mounting in the vehicle.

  • 12A, 12V charge rating
  • Automatic operation regulates output to a single battery bank
  • Front panel amp meter indicates output current. Optional vehicle side mount indicator
  • Designed for rigors of emergency vehicle use; heavy duty aluminum case with protective front panel plate and wire strain relief
  • UL recognized
  • 3 year warranty


Data Sheet

Specifications

  • Input: 120 Vac, 50/60 Hz, 2.5 Amps Max
  • Input Fuse: 5 Amps, Fast Acting
  • Output: 12 Vdc, 12 Amps
  • Output Fuse (Recommended): 25 Amps
  • Charge Indicator: 0-15 Amps
  • Weight: 11 lbs



Other voltages:

Auto Charge 12, 6 Volts, 12 Amps – 091-12-6
Auto Charge 12, 24 Volts, 6 Amps – 091-165-24
Auto Charge 12, 32 Volts, 5 Amps – 091-12-32
Auto Charge 12, 36 Volts, 4 Amps – 091-12-36
Auto Charge 12, 48 Volts, 3 Amps – 091-12-48

Optional Indicators

091-165-016 and 091-11-102-12

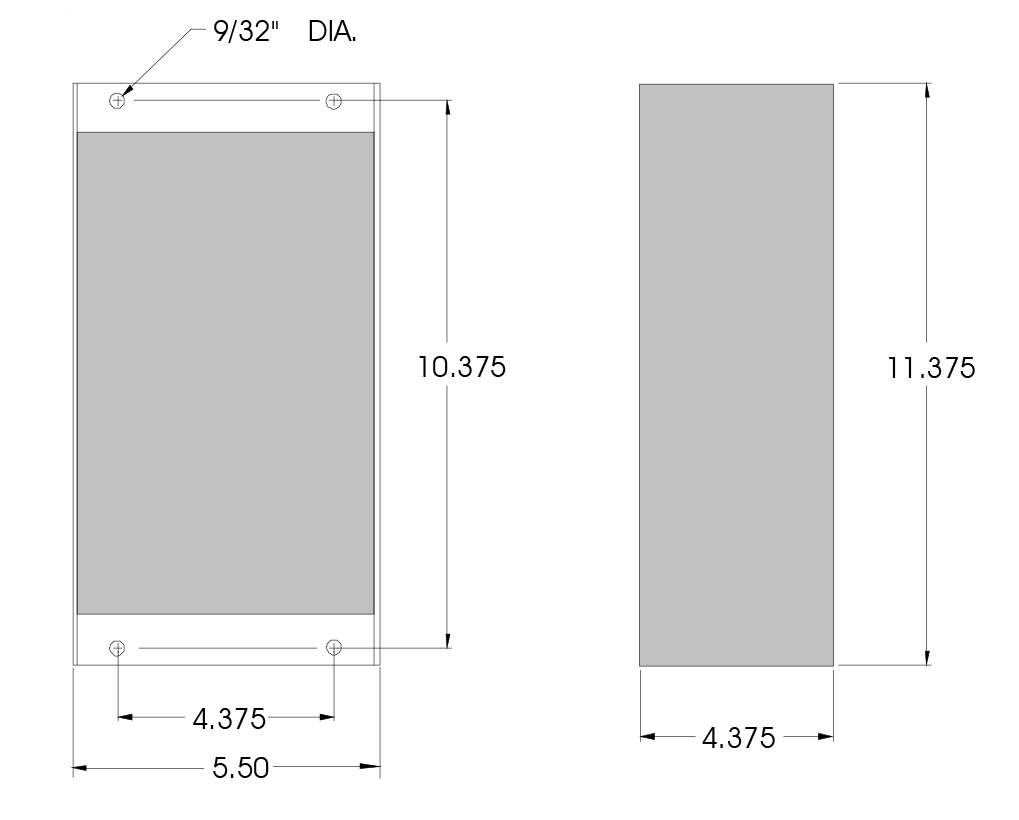

Dimensions
