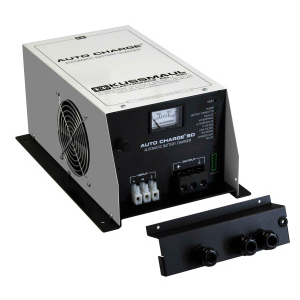

Auto Charge SD 150, 091-168-12

Auto Charge SD 150, 091-168-12

The Auto Charge SD 150 is a state of the art, high output battery charger that provides a rapid recharge for an emergency vehicle’s battery. A special equalizing circuit raises the charger’s output voltage for 1 hour when the charger is turned on. This reduces the time required to charge the battery and helps rejuvenate the battery’s plates. At the conclusion of the equalize period the output switches to the normal float charge mode. The patented “sample and hold” circuit precisely measures the battery voltage eliminating errors due to voltage drop in charging wires.
A series of diagnostics continually checks the operation of the charger. LED’s indicate normal and abnormal operation. Excessive output voltage is detected, as are insufficient output, high temperature and high resistance connections. An LED also indicates when the battery is disconnected. The remote indicator is a dual bar graph indicating both charger voltage and output current.

Login to purchase

Description

Features:

      • 50A, 12V charge rating
      • A patented built-in sense circuit checks battery voltage 120 times per second to compensate for voltage drop in charging wires providing quick re-charge, with no overcharge
      • Provides automatic boost voltage (14.25V) for rapid recovery. After 1 hour, switches to normal float voltage (13.25V), no overcharge
      • Boost voltage conditions battery plates for longer cell life
      • High temperature protection circuit, shuts down charger and activities alarm. Operation automatically restored when safe temperature is reached
      • Designed for rigors of emergency vehicle use; heavy duty aluminum case with protective front panel plate and wire strain relief
      • 3 year warranty



Specifications:

      • Input: 115 Vac, 50/60 Hz, 15 Amps Max
      • Input Fuse: 20 Amps, Slow Blow
      • Output: 12 Vdc, 50 Amps
      • Output Fuse (Recommended): 100 Amps (Part Number: 090-0100-0)
      • Voltage Sense: Remote, Electronic, No Sense Wires Required
      • Indicators: Power, Battery Connected, Equalize, Hi Resist, Hi Temp, Hi Volt Low Volt, Shutdown, Low Volt/Low Current, and Fan
      • Charge Indicator: Remote Bar Graph Display, Indicates Voltage and Current of Battery
      • Weight: 40 lbs
