Description

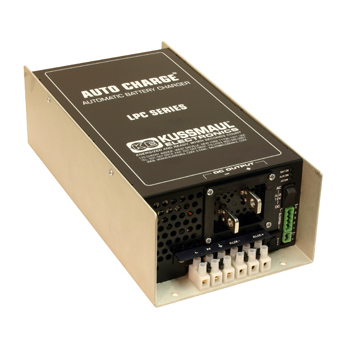

The LPC series smart chargers, provide rapid replenishment of batteries, with a clean, no electronic interference output. May be used for positive and negative ground systems. Front panel connections allow easy wiring of AC Power, Batteries, Remote Indicator, and Auxiliary Loads, such as hand lights, radios, and Auto Pumps.
This charger has three remote indicator options. Option 1, is the standard, 10 Element, Single Bar Graph Display. Order 091-206-12 for this option. Option 2, is the Auto Charge Deluxe Status Indicator. This indicator has a digital voltage and ampere display, a 5 segment bar graph display to indicate the output current, and 4 LED’s to show the condition of the batteries. Order 091-206-12-194C for this option. Or Option 3, is the Watertight Auto Charge Deluxe Status Center. This is the same indicator as Option 2, only the indicator is housed in a watertight bezel. The bezel is available in 6 different colors, Red, White, Blue, Yellow, Gray, and Black. Specify color choice when ordering. Order 091-206-12-194C-WT-BL for a Blue Bezel, 091-206-12-194C-WT-BLK for a Black Bezel, 091-206-12-194C-WT-GY for a Gray Bezel, 091-206-12-194C-WT-RD for a Red Bezel, 091-206-12-194C-WT-WH for a White Bezel, 091-206-12-194C-WT-YW for a Yellow Bezel.
- 80A, 24V charge rating
- Light weight, small low profile size
- Auxiliary 15A output circuit with power source selector switch for operating accessory loads: air compressor pumps, hand lights or handheld radios
- Front panel connections for remote display and auxiliary loads
- Remote battery sensing output to compensate for longer charging cables
- Designed for rigors of emergency vehicle use; heavy duty aluminum case
- 3 year warranty
