LPC 20, 091-207-12

LPC 20, 091-207-12

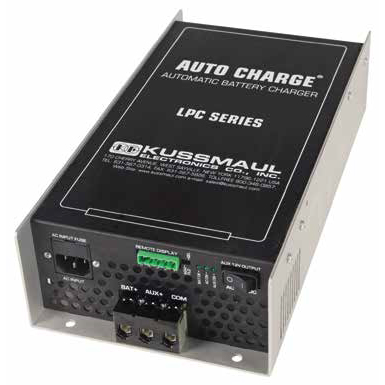

The LPC 20 is a fully automatic battery charger designed in a compact rugged package that saves valuable compartment or under seat space in fire apparatus and other emergency vehicles.

Login to purchase

Description

The LPC series smart chargers, provide rapid replenishment of batteries, with a clean, no electronic interference output. May be used for positive and negative ground systems. Front panel connections allow easy wiring of AC Power, Batteries, Remote Indicator, and Auxiliary Loads, such as hand lights, radios, and Auto Pumps.

  • 20A, 12V charge rating
  • Light weight, small low profile size
  • Clean output poses no interference with radios and other mobile electronics
  • Auxiliary 15A output circuit with power source  selector switch for operating accessory loads: air  compressor pumps, hand lights or handheld radios
  • Front panel connections for remote display and  auxiliary loads
  • Designed for rigors of emergency vehicle use; heavy duty aluminum case
  • 3 year warranty

Specifications

  • Input: 120 Vac, 60 Hz., 7 Amps Max
  • Input Fuse: (2) 8 Amp Fast Acting
  • Output: 12 Vdc, 20 Amps
  • Output Fuse (Recommended): 30 Amps (Part Number: 090-0030-0)
  • Charge Indicator Options: Remote Bar Graph Display, Deluxe Status Center, or Watertight Status Center
  • Weight: 6 lbs

Optional Accessories

091-200-IND  /  091-194B-IND  /   091-194B-IND-WT











E-Z SLIDE MOUNTING PLATE, MODEL #: 091-200-EZM
• Locking mounting system
• Ease the installation and the removal of larger sized chargers that are in harder to access areas, such as under seats











30 AMP WATERPROOF CIRCUIT BREAKER, MODEL #: 090-0030-0
• Combines switching and circuit breaker function
• Compact size and surface mount configuration
• Protects high amperage circuits
• Latch arms resets breaker after overload
• Cannot be held in ON position if short remains on circuit
• Waterproof – Ideal for truck applications

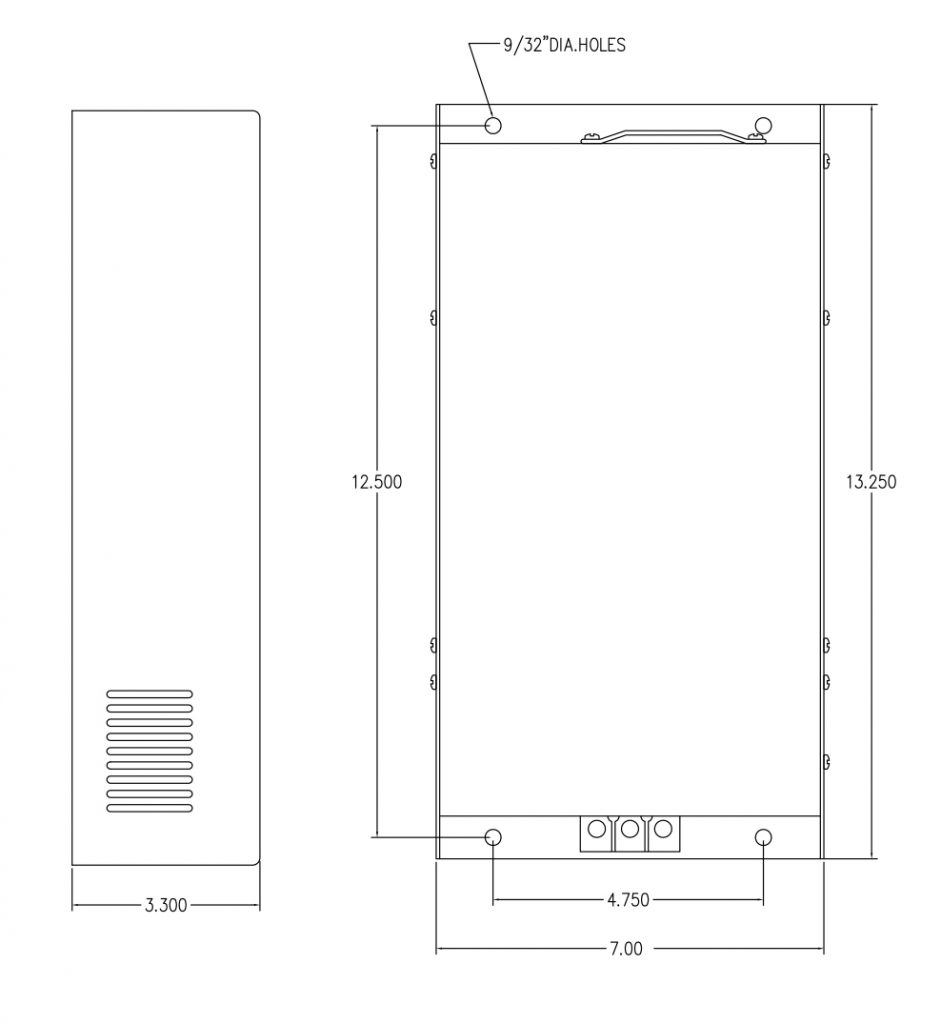

Dimensions
