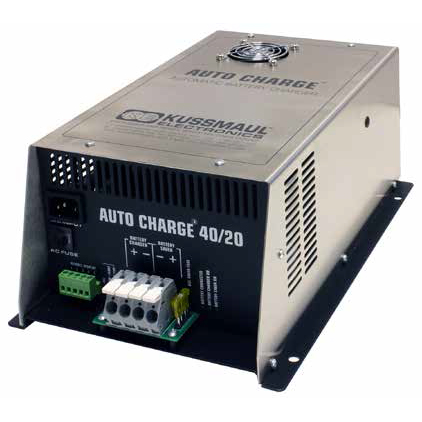

Auto Charge 40/20, 091-216-40/20

Auto Charge 40/20, 091-216-40/20

The Auto Charge 40/20 is an intergrated charger with Battery Saver Low Ripple. The 40/20 is a completely automatic, modified 3-step, single channel battery charger designed for vehicles with a single battery system. The combined battery charger and battery saver provides a complete package. Additionally, the battery saver output provides uniterrupted power to accessory loads. This complete package simplifes installation and improves system relialility due to parasitic loads. The charger is also ruggedized to withstand the shock and vibration encountered by vehicle mounted equipment.

Login to purchase

Description

Features:

  • 60A total: 40A battery charger, 20A battery saver
  • Automatic operation regulates output to a single battery bank
  • Separate 20 Amp ATC fuse protected “Battery Saver” output eliminates drain on vehicle battery when in station
  • Clean output poses no interference with radios and other mobile devices
  • Automatic current limit
  • Reverse polarity protected
  • AC input circuit breaker protection
  • Battery Type Selector Switch: Lead-Acid/AGM or Gel-Cell
  • 1-hour “boost” voltage for rapid recovery
  • 3 year warranty



Specifications:

  • Input: 120 Vac, 50/60 Hz, 8.5 Amps Max
  • Input Fuse: 10 Amps, Resettable Circuit Breaker
  • Battery Charger Output Power: 12 Vdc, 40 Amps Max
  • Battery Saver Output Power: 14.0 Vdc, 20 Amps Max
  • Output Waterproof Circuit Breaker (Recommended): 50 Amps, Part Number: 090-0050-0
  • Battery Saver Low Ripple Output Fuse: 20 Amp, ATC fuse, 091-FUS0257020
  • LED Status Indicators: Bat Connected, Bat Charger On, Bat Saver On
  • Battery Type Selector Switch: Lead-Acid/AGM: Boost=14.0VDC; Float=13.2VDC, Gel-Cell: Boost=13.8VDC; Float=13.4VDC
  • Boost Voltage Timer: 1-Hour (starts when AC power is applied)
  • Weight: 13 lbs





Optional Accessories:











BAR GRAPH DISPLAY, 091-200-IND
• 10-Segment LED display indicate the “state of charge”
and the general condition of the batteries

DELUXE STATUS CENTER, 091-194-IND
• Indicator has a digital voltage and ampere display
• 5 segment bar graph display indicates output current
• 4 LED’s to show the condition of the batteries

WATERTIGHT DELUXE STATUS CENTER, 091-194-IND-WT-XX
• Indicator has digital voltage and ampere display
• 5 segment bar graph display indicates output current
• 4 LED’s to show the condition of the batteries
• Indicator is housed in a watertight bezel
• Bezel is available in 6 different colors,
Red, White, Blue, Yellow, Gray, and Black
Specify color choice when ordering

WATERPROOF CIRCUIT BREAKER, 090-0050-0
• Combines switching and circuit breaker function
• Compact size and surface mount configuration
• Protects high amperage circuits
• Latch arms resets breaker after overload
• Cannot be held in ON position if short remains on circuit
• Waterproof – Ideal for truck applications
