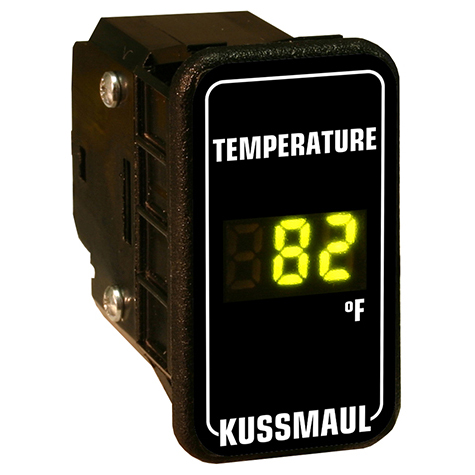

Temperature Monitor 091-224

Temperature Monitor 091-224

The 091-224 Temperature Monitor may be used to indicate either inside or outside temperature and is designed to fit into a standard 1.45” x 0.83” panel cutout.

Login to purchase

Description

  • Monitors temperature
  • Designed for easy installation in vehicle switch panels
  • Large 7 segment green LED display
  • Reverse polarity protected
  • Easy connection to 12V switched ignition
  • Remote Sensor with 16’ cable
  • Blinks at 32° F or 0° C and below to indicate roads may be icy
  • Available in °F or °C
  • 3 year warranty


Data Sheet

Specifications

  • Input: 11-16 Vdc, 0.25 Amps
  • Remote Sensor: 16′ Cable
  • Temperature Range: -45°C to +65°C
  • Accuracy: ±1°C at 22°C, ±5°C at -45°C to +65°C
  • Cut-Out-Size: 1.45″ x .83″
  • Weight: .25 lbs
