Mini Single Bar Graph Display 091-234

Mini Single Bar Graph Display 091-234

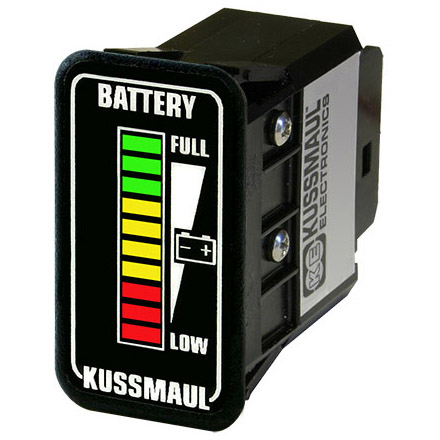

The Mini Single Bar Graph Display 091-234 is a universal display containing a 10-LED bar graph to indicate the vehicle’s battery status.

Login to purchase

Description

The top or bottom LED’s blink to indicate HIGH VOLTAGE or LOW VOLTAGE is detected, respectively. The switch is designed to fit into a standard 1.45” x 0.83” panel cut-out.

  • 10 LED Bar Graph battery status display
  • Detects HIGH and LOW voltage on the vehicle battery by flashing the top or bottom LEDs, respectively
  • Works with all new generation single output  Kussmaul Battery Chargers
  • Designed for easy installation in vehicle switch panels
  • 3 year warranty

Data Sheet

Specifications

  • Input Voltage: 12 to 30 VDC
  • Input Current: 30mA, Max
  • Temperature Range: -40F to 120F
  • Cutout Size: 1.45” x 0.83”
  • Bar Graph Range: 12-13 +/- 2% (bottom to top)
  • Low Voltage: < 12.0 VDC (bottom LED flashes)
  • High Voltage: > 14.8 VDC (top LED flashes)
