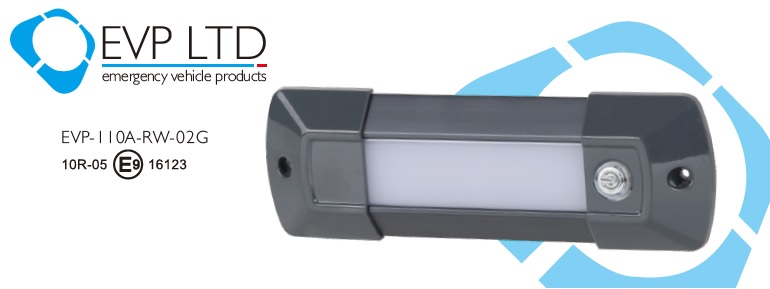

173mm or 300mm dimmable red/white or NEW white interior light with touch switch 110 Series – Grey Housing

The 110 series interior light with grey housing exclusively from EVP.

With a switched, and  none switch version, this amazingly versatile light offers a dual colour red/white or white only offering of 5700K~6500K output. With the switch version this makes the unit dimmable, and the light starts with red first and then white when you toggle to the next option for the dual colour version.

As standard the unit has a secondary positive input which can be connected to a door switch etc. Once power to this input is switched off, the white light will stay on for a 15 second period and then switch off like a curtesy light.

Switched Dual Colour Red/White 173mm long = EVP-110A-RW-02G

Switched Single Colour White 173mm long = EVP-110A-02W-G

Switched Dual Colour Red/White 300mm long = EVP-110B-RW-02G

Switched Single Colour White 300mm long = EVP-110B-02W-G

Description

  • 10-30v
  • IP67
  • Approval – ECE R10
  • 5700k~6500k colour temperature
  • Aluminium alloy housing with Grey plastic cover
  • Dimensions: 173 or 300×56.9×15.1
  • Dual Colour Dimmable Red/White
  • NEW – Now available with white light only Dimmable
  • Touch switch control
  • 5 Year Warranty



Data Sheet

Additional information

Weight 0.3 kg
Dimensions 5 × 5 × 5 cm
Colour

Red+White, White

Size

173mm, 300mm

Touch button functions

1. Single colour: On/30% of Brightness/70% of Brightness/100% of Brightness/OFF.

2. Dual colours: White/red, white/blue

A. Short press of the button: To change colours: ON/white/red/OFF, ON/white/blue/OFF, ON/white/red/blue/OFF;

B. Long press of the button: To change brightness infinite (Stepless dimming: 1%-100%).

Dimensions
