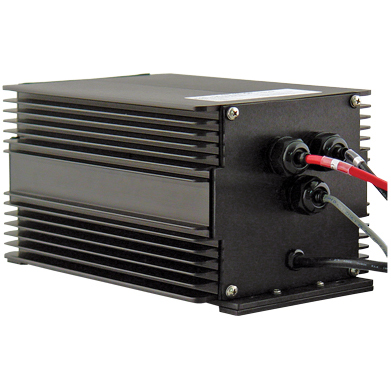

Waterproof Charger, 440-4910-0

The WP-35, is a rugged waterproof charger, specifically designed for installation in exposed locations onboard fire trucks, utility, and specialty vehicles.

Description

The 100% sealed case permits installation in wet and exposed areas not available to traditional onboard chargers, thus freeing valuable in-cab and compartment space. A waterproof remote meter for mounting on the side of the vehicle, or in-dash, displays the charge level via color coded bar graph, allowing quick check of battery condition.

  • 35A, 12V charge rating
  • Sealed case allows installation in exposed locations
  • Frees in-cab and compartment space by allowing charge installation in areas not suitable for standard chargers
  • No exposed terminals
  • Rugged anodized aluminum case with integral heat sinks for cool operation
  • Remote bar graph display included
  • 3 year warranty

Specifications

  • Input: 120 Vac, 50/60 Hz, 10 Amps Max
  • Output: 12 Vdc, 35 Amps
  • Charger Status Indicators: AC Power “ON,” DC Power “ON”
  • Output Fuse (Recommended): 50 Amps (Part Number: 090-0050-0
  • Charge Indicator: Remote Bar Graph Display
  • Weight: 30 lbs

Display Included

091-200-IND







Dimensions
