EV 40 Series Charger, 445-5262-0

EV 40 Series Charger, 445-5262-0

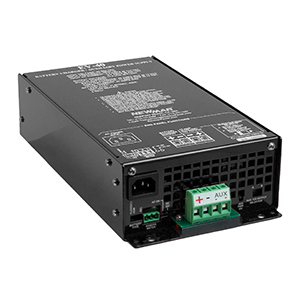

The EV 40 Series Charger, Model EV-40, is a smart charger that provides rapid replenishment of batteries, with a clean, no electronic interference output. Front panel connections allow easy wiring of batteries, remote meter, and auxiliary loads such as hand lights/radios /air pumps. Get more battery charging power in a compact package that saves valuable compartment or under seat space in fire apparatus and other emergency vehicles.

Login to purchase

Description

Features:

  • 40A, 12V charge rating
  • Fast 3 step charging: Produces up to 40A output to quickly replenish batteries, then switches to lower float voltage maintenance mode for no overcharging
  • Battery type selector switch to program use with Gel Cell/ Flooded Lead Acid/AGM batteries
  • Lowest profile design, only 3.2″ high
  • Auxiliary 15A output circuit with power source selector switch for operating accessory loads: air compressor pumps, hand lights or handheld radios
  • Heavy duty terminal block for secure connections
  • Durable powder coat finish
  • 3 year warranty



Specifications:

  • Input: 120 Vac, 50/60 Hz, 3.1 Amps Max
  • Output: 12 Vdc, 20 Amps
  • Auxiliary Output: 12 Vdc, 15 Amps
  • Output Fuse (Recommended): 30 Amps (Part Number: 090-0030-0)
  • Indicator Lights: AC Ok, DC Ok, Auxiliary Power OK
  • Charge Indicator: Optional Remote Bar Graph Display
  • Weight: 5 lbs

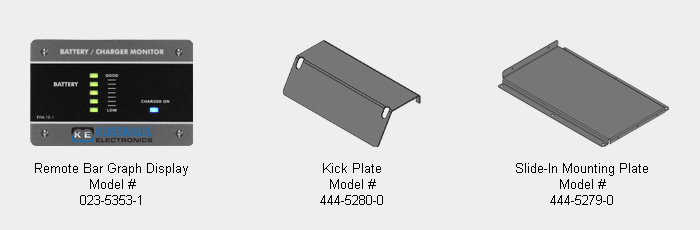

Optional accessories:
