Getac F110 Rugged Tablet

With our docking stations, you can seamlessly integrate Getac tablets into your workforce to enhance productivity without sacrificing quality, safety or longevity.

Description

Dell Blue RGB Logo

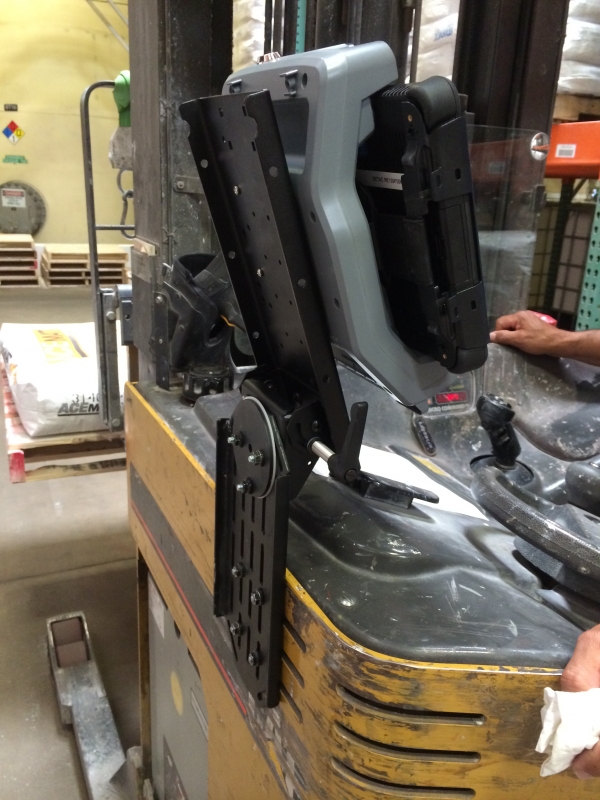

The Havis Docking Station for the Getac F110 tablet will improve mobile worker productivity by providing a secure location for tablet charging and connection to essential peripherals, such as printers, keyboards and barcode scanners. Recessed port replication will protect cable connections and allow for strain relief to prevent accidental disconnects. The docking station series will include a variety of models that feature a triple high-gain antenna to improve range and Lind power supply with customized cord length and connector tip. It will also be one of the first Havis docking stations to offer models with an internal power supply that connects to the vehicle’s lighter plug for convenient charging.


Data Sheet

Specifications

  • Height: 11.1” (28.2 cm)
  • Width: 8.7” (22.2 cm)
  • Depth: 4.4” (11.1 cm)
  • Weight: 2.1 lbs (0.95 kg)

Certifications & Testing

  • Vibration Testing: MIL-STD 810G 514.5
  • Impact Test: Crash Simulation per SAE J1455 (Forward/Rearward/Side Impact Directions)
  • Cycle Test: Latch tested to 30,000 cycles
  • CE, RoHS

Product Codes

Part Number USB 2.0 USB 3.0 VGA Ethernet Serial HDMI Speaker/Mic Power Input
(DC IN 19V)
Bundled
Power Supply
Antenna
DS-GTC-201 3 1 1 1 2 1 1 each 1 No No
DS-GTC-201-3 3 1 1 1 2 1 1 each 1 No Yes, Triple High-Gain
DS-GTC-202 3 1 1 1 2 1 1 each 1 Yes No
DS-GTC-202-3 3 1 1 1 2 1 1 each 1 Yes Yes, Triple High-Gain
DS-GTC-203* 0 0 0 0 0 0 0 0 No No
DS-GTC-203-3* 0 0 0 0 0 0 0 0 No Yes, Triple High-Gain

* Cradle only option (no electronics)
