Panasonic Toughpad FZ-G1

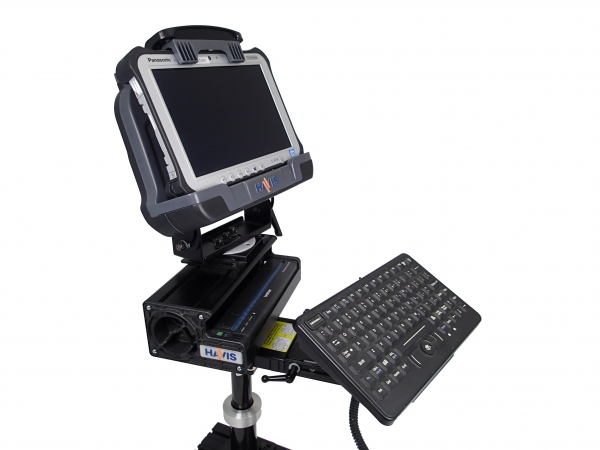

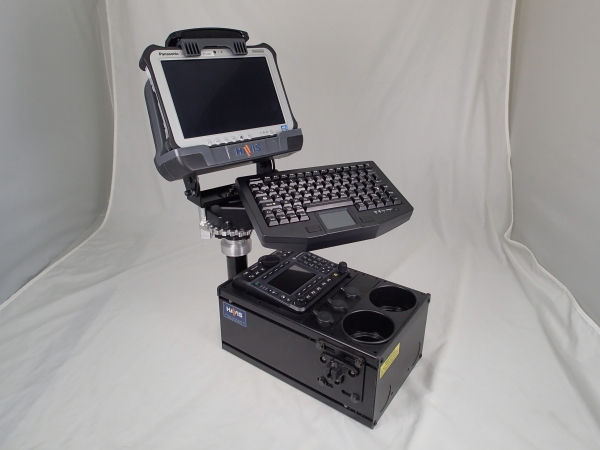

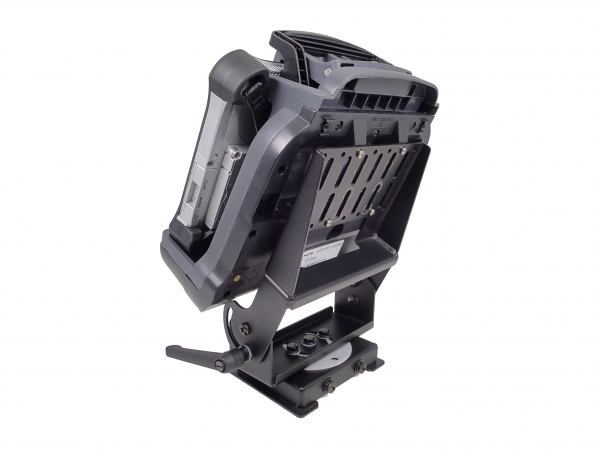

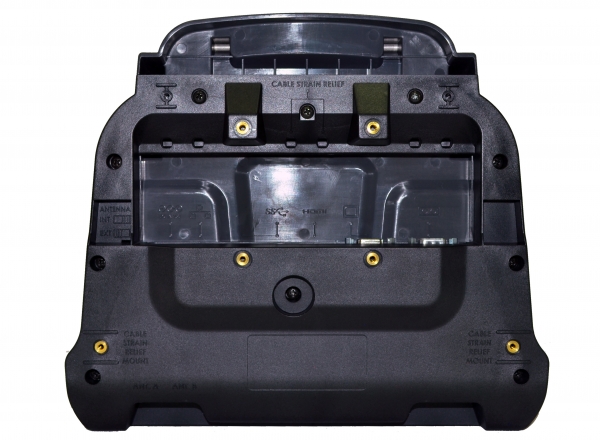

The Havis Docking Station for the Panasonic Toughpad FZ-G1 brings you the best computing solution for all your business needs.

Description

Panasonic logo

The Havis Docking Station for the Panasonic Toughpad G1 brings you the best computing solution for all your business needs. Designed with versatility in mind, this docking station is compatible with every model of the Windows based 10” tablet, with and without the optional handstrap. Havis mounting options allow for tablet docking and usage in nearly any work environment. The DS-PAN-700 Series Docking Station offers tablet charging, security, and connection to peripherals in medical, enterprise, and in-vehicle workplaces. Maximize your productivity with this rugged yet lightweight dock – built with theft deterrence, longevity, and stability in mind.


Data Sheet


Owner’s Manual

Specifications

  • Height: 10.0” (25.5 cm)
  • Width: 11.4” (28.9 cm)
  • Depth: 4.3” (10.9 cm)
  • Weight: 2.2 lbs (1.0 kg)
  • Mounting Pattern: VESA 75

Certifications & Testing

  • Panasonic: Toughbook Tested
  • Vibration Testing: MIL-STD 810G 514.5
  • Impact Test: Crash Simulation per SAE J1455 (Forward/Rearward/Side Impact Directions)
  • Cycle Test: Latch tested to 30,000 cycles

Port Replication

  • Best-in-class circuit and power system supports fully powered USB 3.0
  • Ethernet: RJ45 (1)
  • USB: Fully-Powered USB 3.0 (2)
  • Video: VGA D-Sub 15 pin (1)
  • Serial DB9: Non-Native (1)
  • HDMI (1)
  • Power Input: 16 V DC
  • Antenna: Dual Hi-Gain (Optional)

Compatible With

All Toughpad G1 Models

ToughpadG1
