Havis Touch Screen Display

The Havis Touch Screen Display is the latest mobile office solution featuring a new lightweight, high-resolution touch screen display and optional vehicle-specific dash mounts designed to improve productivity in a mobile office.

Description

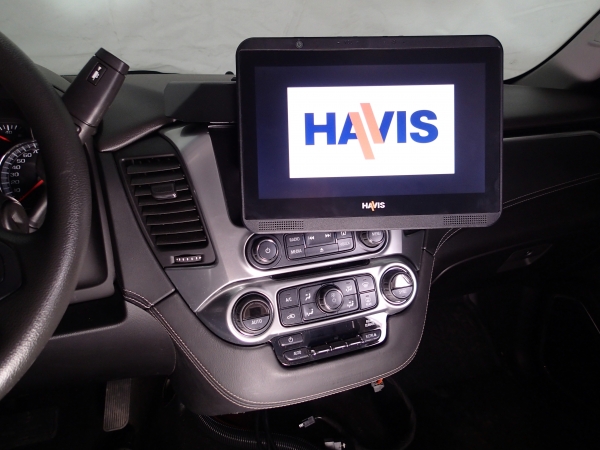

The new space-saving display functions as an external monitor that mounts close to the dash, providing the option to dock and mount computing devices in the trunk or elsewhere in the vehicle to maximize space and create a comfortable work environment in the cabin.

New display provides the convenience of touchscreen navigation and space savings. Features include a red monochrome night mode and easy back-and-forth toggle for maximum visibility in all environments.

New Vehicle Specific Dash Mounts incorporate a unique friction-based hinge with a tilt/swivel motion for a range of adjustments to help drivers and passengers maintain optimum posture, minimize eye and body strain, reduce glare and access the OEM control panel.

Compact mount design optimizes space for additional equipment and peripherals to be mounted in the cabin, including the new Havis Rugged Keyboard and patent pending mount featuring red monochrome illumination backlight and quick release functionality.


Data Sheet


Owner’s Manual

Specifications

  • Display:
    • Screen Size: 11.6” diagonal (16:9)
    • Resolution: 1366 x 768
    • Product Size: 11.6” x 8.5” x 1.4”
    • Weight: 2.2 lbs.
    • Brightness: 800 nits, 20 levels of adjustment
  • Touch Screen:
    • Capacitive Multi-Touch 2 Finger
  • Operating Temperature:
    • -21°C to 60°C (-6°F to 140°F)
  • Quick Keys:
    • Power Button
    • Volume +/-
    • Brightness +/-
  • Power Supply:
    • 11–16 VDC Input
    • 12 VDC Output
  • Audio:
    • Two 2.0W stereo speakers
  • Mounting:
    • VESA 75
    • Embedded mounting hardware built into chassis
    • Mount screen landscape or portrait mode
  • OS Language:
    • Windows Win7 & Win8 (tested)
  • Green Product:
    • ROHS 2.0



Port Replication

  • USB 3.0 (x3)
  • HDMI 1.3 (x1)
  • Power Input

Safety & Quality Testing

  • Vibration Testing: MIL-STD 810G 514.5
  • Impact Test: Crash Simulation per SAE J1455
    (Forward/Rearward/Side Impact Directions)
  • Environmental Testing: Hot/Cold Operation and Storage
  • CE, FCC
