Description

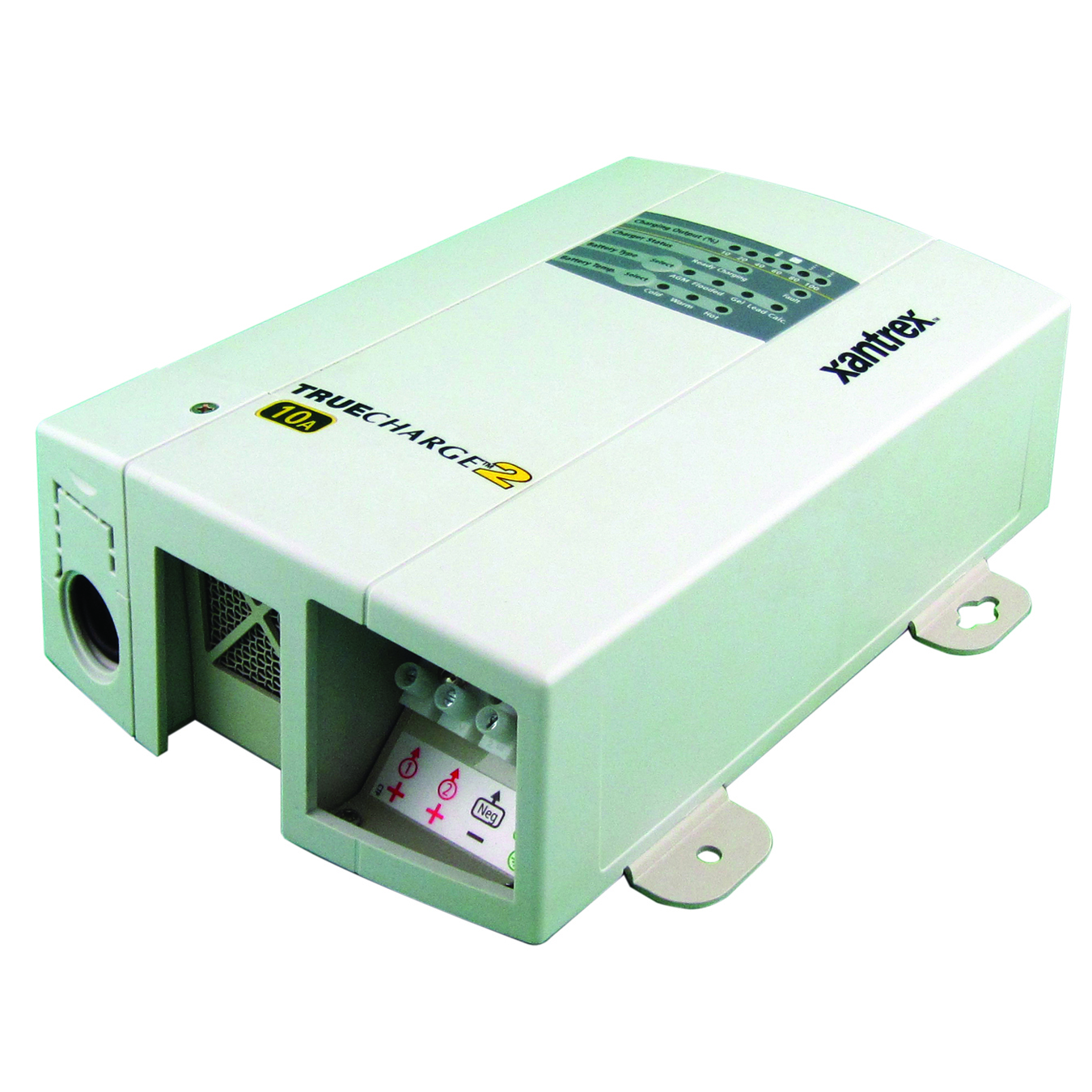

TRUECHARGE2 Battery Chargers lead the industry with a small footprint and ultra-compact design.
Designed for commercial applications worldwide, the TRUECHARGE2 10-amp features universal auto ranging input voltage (90 Vac to 265 Vac, 47 to 63 Hz), which can be used in most parts of the world. The TRUECHARGE2 10-amp is small and light and can be mounted in a variety of positions.
The TRUECHARGE2 10-amp charger uses power factor correction to deliver a full three-stage charge cycle. As a result, the charger requires less incoming AC power to operate at its peak efficiency, freeing up more usable AC power for onboard electronics.
- Microprocessor-controlled, multistage charging algorithms
- Charges flooded, gel, AGM or lead-calcium batteries
- Power factor corrected, temperature-compensated charging
- Mounting is possible in a variety of orientations and in areas where space is limited
- Easy access to AC and DC wiring from one side
- Tested to conform to ingress protection rating IP32 and meets UL1564, UL1236 including marine supplement and ABYC standards
Electrical Specifications (@25°C):
- Output current (nominal): 10 A
- Output voltage (nominal, depending on settings):
Charge: 14.2 – 15.5 Vdc
Float: 13.4 – 13.8 Vdc
Equalize: NA - DC output connections: Two
- AC input voltage: 90-265 Vac 47-63 Hz 120 Vac, 230 Vac, 240 Vac nominal
- Temperature compensation: Three settings
- Charger efficiency: > 80%
- Battery type: Gel, Flooded, AGM, Pb-Ca
- Minimum recommended battery bank size: 20 Ah
Technical Specifications:
- Operating temperature*: 0 to 65°C
- Storage temperature: -40 to 80°C
- Battery connection:
Two positive terminals
One negative terminal - Dimensions (H x W x L): 2.7 x 5.4 x 8.8” (70 x 138 x 224 mm)
- Weight: 3.3 lb (1.5 kg)
- Warranty: Two year
- Part Number: 804-1210
*Output may de-rate above 50°C
Accessories:
• TRUECharge™2 Remote Panel
part# 808-8040-01
