Dell Latitude 12 Rugged Tablet

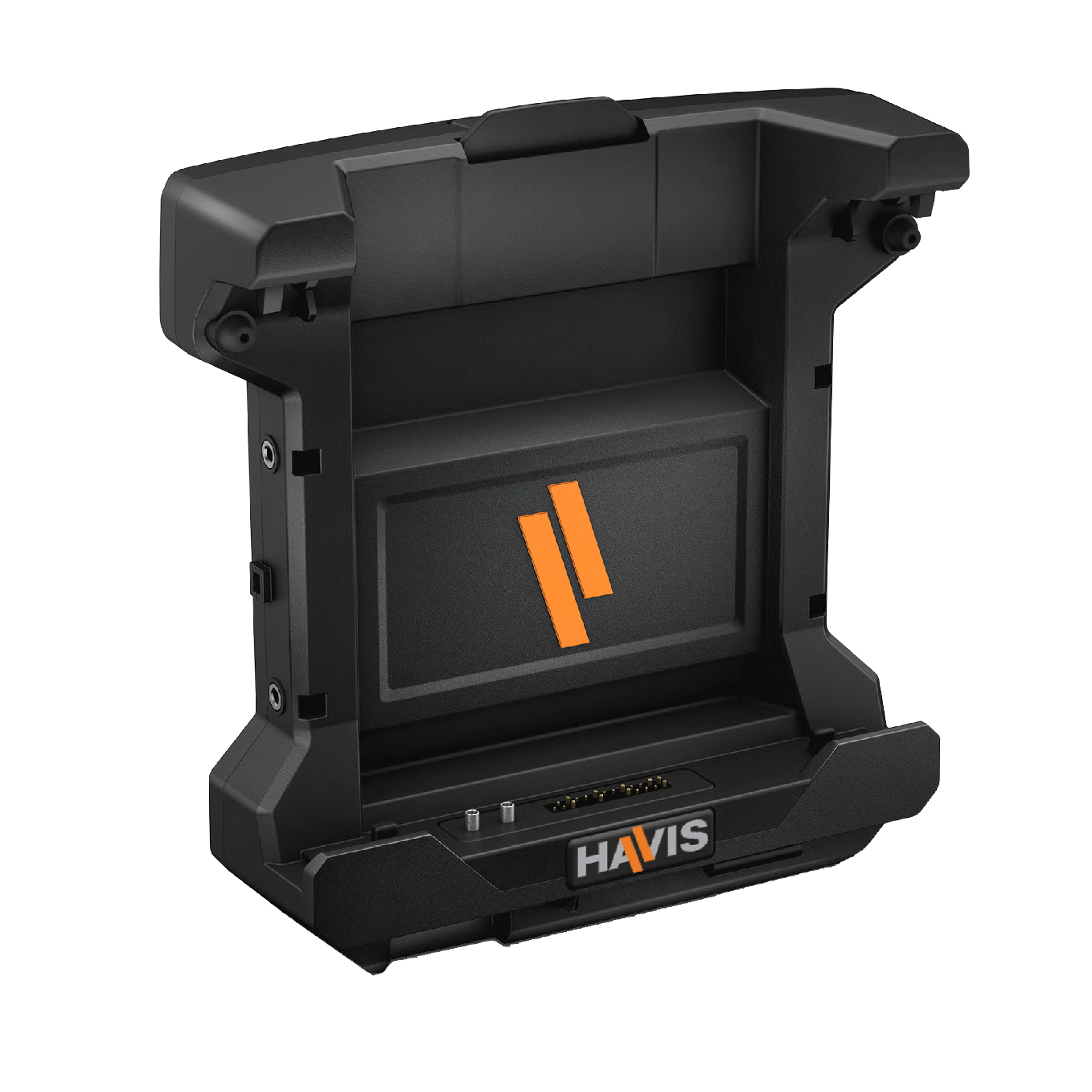

The Havis Docking Station for the Dell Latitude 12 Rugged Tablet brings you the best computing solution for all your business needs.

Description

Dell

With the release of the Windows based Latitude 12 Rugged Tablet from Dell, Havis brings you the best computing solution for all your business needs. The DS-DELL-600 Series Docking Station will offer tablet charging, security, and connection to peripherals in enterprise, warehouse, and other in-vehicle work environments. Maximize your productivity with this lightweight and strong design that is built with theft deterrence, longevity and stability in mind.



  • Low profile design maximizes available space inside of vehicle.
  • Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable management.
  • Rounded corners and edges are ideal for your safety in accidents and air bag deployment, in addition to daily use and operation of docking station.
  • Designed to fit VESA 75 hole pattern mounting equipment.
  • Lock and key supplied for peace of mind theft deterrence.
  • Optional Internal Power Supply available.
  • Havis offers a full line of accessories to complete any solution.



Data Sheet


Owner’s Manual

Port Replication Information

  • Best-in-class circuit and power system supports fully powered USB 3.0
  • USB: Fully-Powered USB 3.0 (2)
  • USB:  Fully-Powered USB 2.0, front accessible (1)
  • Audio:  Front accessible (1)
  • Ethernet: RJ45 Ethernet (1)
  • Serial: RS232 (1)
  • Video: VGA (1)
  • Video: DisplayPort (1)
  • Power Input: 15.6 V DC
  • Antenna: Dual Pass-Through (Optional)

Product Numbers

Part Number USB 2.0 (front) USB 3.0 Ethernet Serial VGA Display Port Bundled Power Supply Internal Power Supply Antenna (optional)
DS-DELL-601 1 2 1 1 1 1 No No None DS-DELL-601-2 (Dual High-Gain)
DS-DELL-602 1 2 1 1 1 1 Yes No None DS-DELL-602-2 (Dual High-Gain)
DS-DELL-603* 0 0 0 0 0 0 No No None DS-DELL-603-2 (Dual High-Gain)
DS-DELL-604 1 2 1 1 1 1 No Yes None DS-DELL-604-2 (Dual High-Gain)
