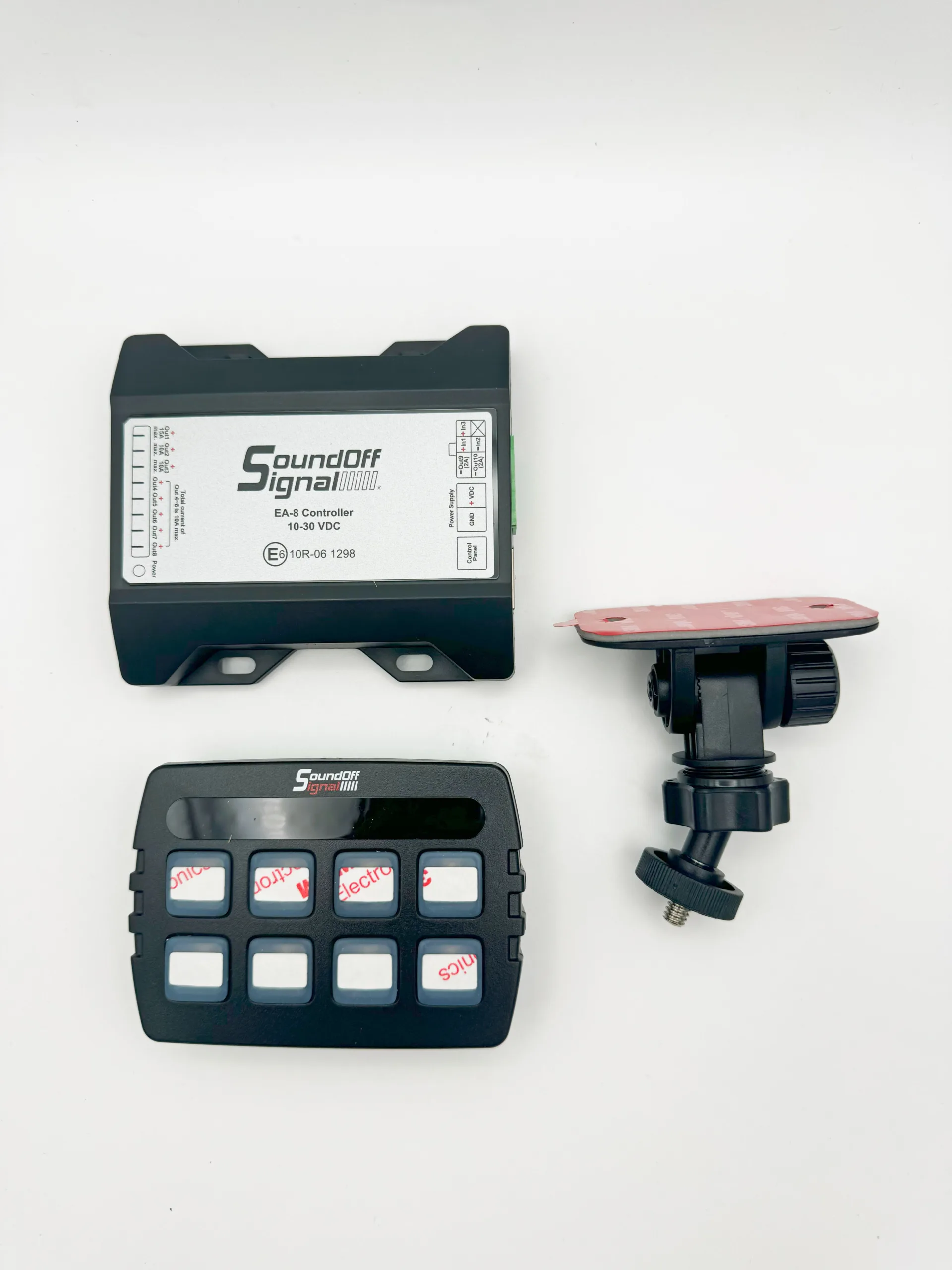

EA-8 Controller

Efficiently control your siren and lighting with this 8-button controller.

With backlit buttons and a buzzer alert to notify users that buttons are activated, this controller is user-friendly.

Description

8-button controller with two-color backlit buttons for ease of use
Programmable buttons for European siren interlock, traffic arrow or scene functions
Easily duplicate your programming on each of your controllers with the EA-8 Duplicator (sold separately)
Features a buzzer alert to notify users that buttons are activated

Max Current	45 amps
Standby Current Draw	<35mA
Outputs	8x (+) 10 amps max per output 2x (-) 2 amps max per output

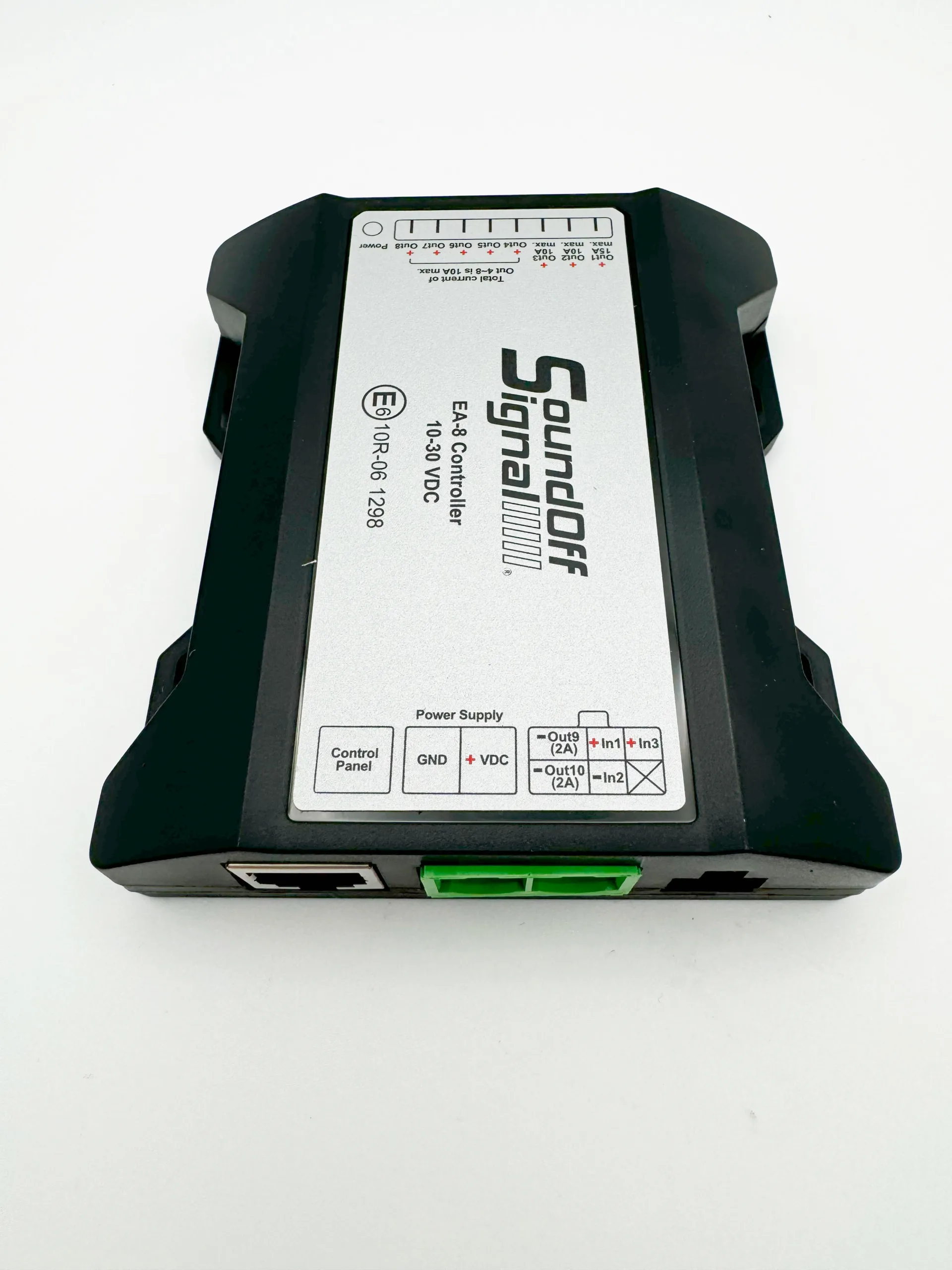

Dimensions	Power module: 26mm H x 92mm L x 101mm W Control panel: 69mm H x 97mm L x 26mm D
