Panasonic Toughbook 19

Panasonic Toughbook 19 docking stations provide the safest, most reliable solution for mobile computing applications.

Description

Dell Blue RGB Logo

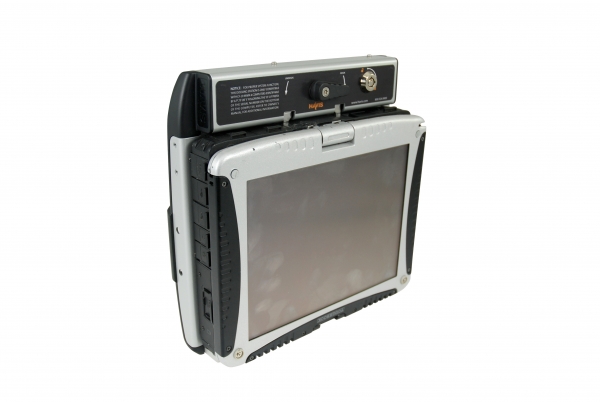

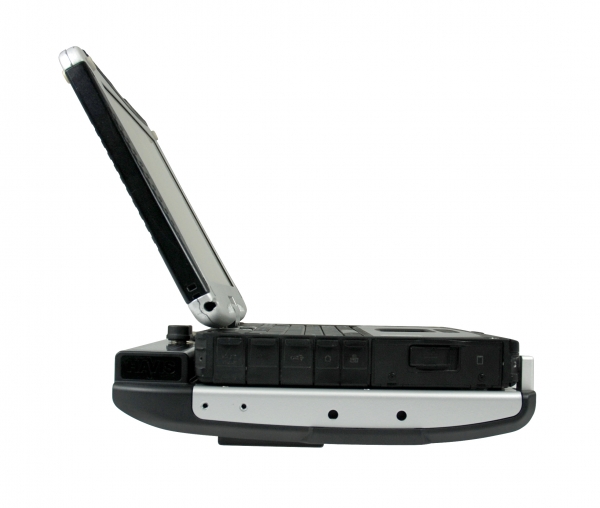

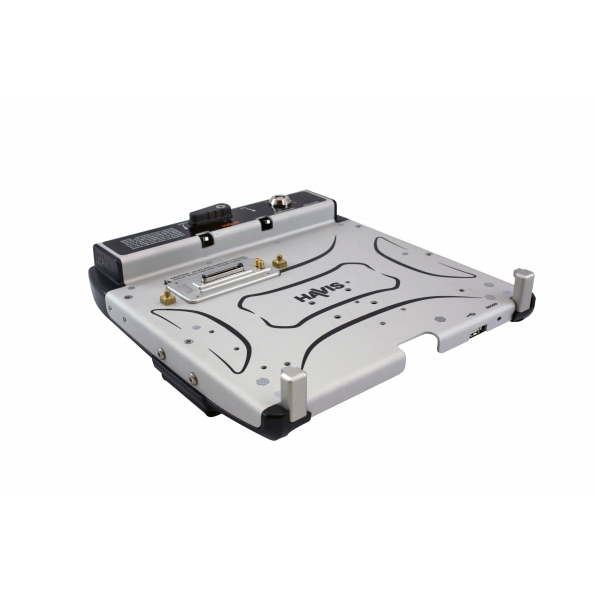

This is the newest line of Docking Stations for the Panasonic Toughbook 19. The DS-PAN-211 Series for Mark 4 and higher, and the DS-PAN-221 Series* for Mark 1 and higher laptops utilize a combination of an aircraft grade aluminum uni-body with glass reinforced PC-ABS impact resistant plastic covers. The DS-PAN-211/221 Series Docking Station provides the safety, durability and ergonomics customers have come to expect from Havis. Flexible connectivity, combined with the market-leading quality, reliability and ruggedness of Havis, creates the industry’s best Toughbook 19 docking solution.

Our Panasonic Toughbook 19 docking stations are the industry’s safest and most secure computing solution, keeping your expensive laptop where it belongs, docked and productive.

  • Constant connectivity is maintained with a guided, floating Docking Connector

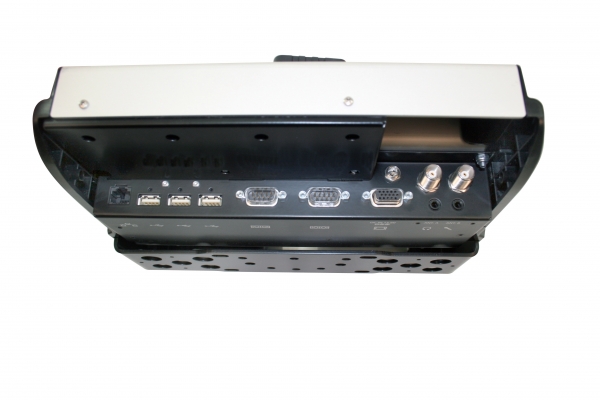

  • Engineered with fully functional rear facing connectors

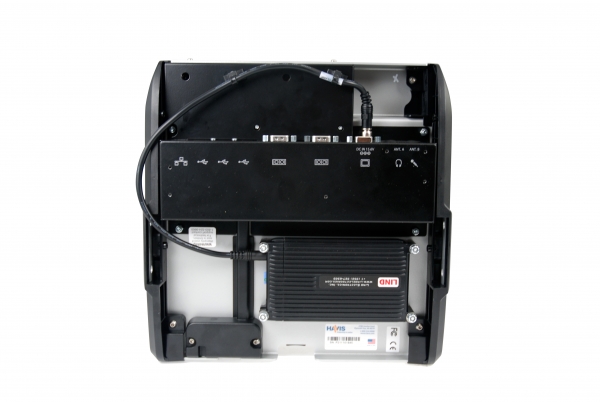

  • Mounting bracket and integrated cable strain relief allows for ease of installation and faster rollouts
  • Theft deterrence is accomplished by the rugged locking system and front hooks by Havis which keeps your Panasonic Toughbook safe and secure
  • LED indicator light keeps the user informed of the dock’s status at all times
  • Strain relief on rear facing connectors prevents loose connections and disconnects
  • Scalable connectivity provides a flexible solution
  • Full line of accessories to complete any solution

* DS-PAN-221 Series docking stations available for a limited time only


Data Sheet


Compatibility


Owner’s Manual

Specifications

  • Height: 3.3” (8.2 cm)
  • Width: 10.9” (27.7 cm)
  • Depth: 11.0” (27.9 cm)
  • Weight: 3.9 lbs (1.8 kg) 4.5 lbs (2.1 kg) Part # DS-PAN-214
  • Construction: Aircraft grade aluminium uni-body with glass reinforced PC-ABS impact resistance plastic covers
  • Finish: Hardened silver powder coat

Certifications

  • Vibration Testing: MIL-STD 810G 514.5
  • Impact Test: 24 Gs on 3 Axes
  • Cycle Test: Latch tested to 30,000 cycles
  • Panasonic: Toughbook Tested
  • IP-66 Compliant (DS-PAN-214 only)

Product Numbers

Part Number Computer Model Compatibility USB 2.0 Serial Ethernet VGA Speaker/
Mic
Integrated
Power
Antenna
DS-PAN-211 CF-19 (Mark 4 and all subsequent
Mark levels)
4 2 1 1 Yes No None
DS-PAN-211-2 (Dual Hi-Gain)
DS-PAN-212 CF-19 (Mark 4 and all subsequent
Mark levels)
4 2 1 1 Yes Yes None
DS-PAN-212-2 (Dual Hi-Gain)
DS-PAN-213* CF-18 & CF-19 (Mark 1 and all subsequent Mark levels) 0 0 0 0 No No None
DS-PAN-214** CF-19 (Mark 4 and all subsequent
Mark levels)
3 2 1 1 Yes No None
DS-PAN-214-2 (Dual Hi-Gain)
DS-PAN-221*** CF-18 & CF-19 (Mark 1 and all subsequent Mark levels) 4 2 1 1 Yes No None
DS-PAN-221-2 (Dual Hi-Gain)

* Cradle only option (no electronics) ** IP-65 Compliant model *** Limited availability
