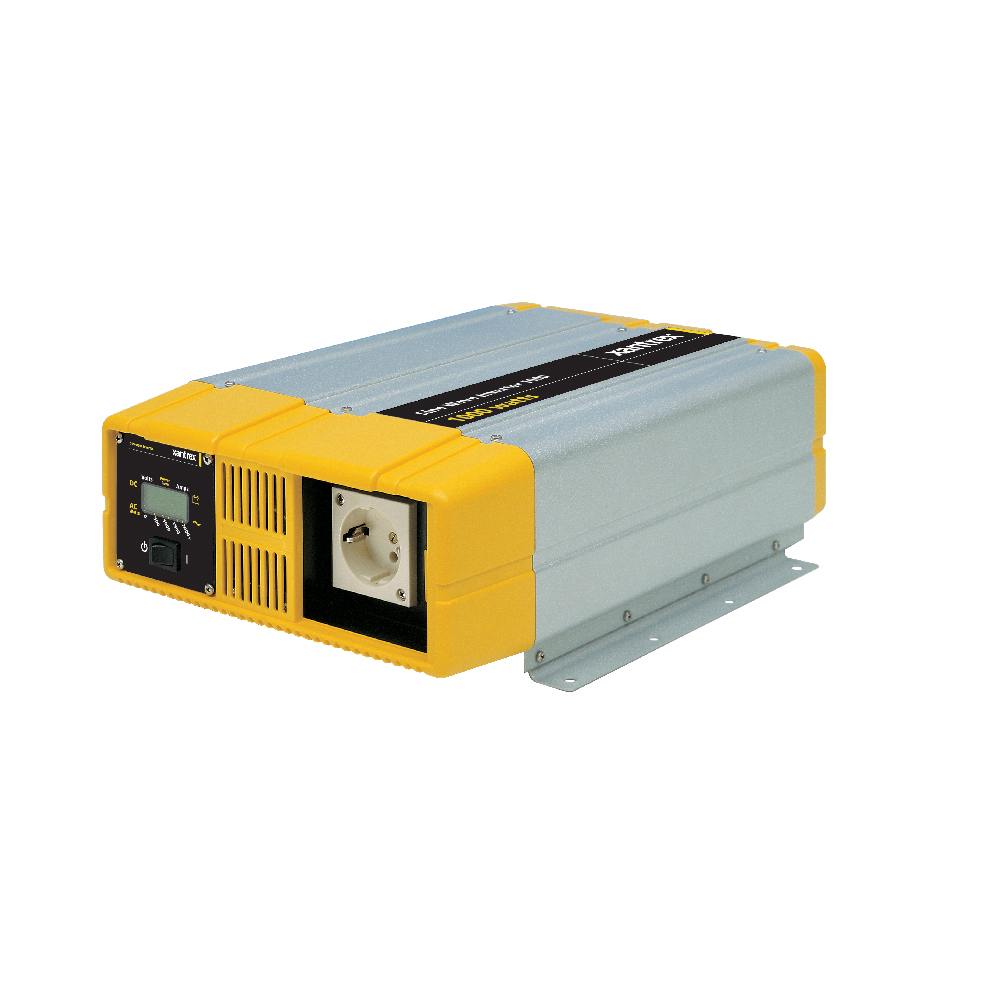

PROsine-i 1000i & 1800i

Heavy duty, true sine wave inverters.

Description

Offering superior quality sine wave output, the Prosine 1000i and Prosine 1800i stand-alone inverters are ideally suited for electrical systems that already have a quality multistage battery charger.
Designed for recreational and industrial applications, Prosine inverters are suitable for both heavy duty and sensitive electronic loads. The inverters are lighter and more compact than others with similar power ratings because they use high-frequency switching technology in the power conversion process.

  • Two models available: 1000 watt (1500 watt surge) and 1800 watt (2900 watt surge)
  • True sine wave output
  • Less than 3% total harmonic distortion, the Prosine delivers true sine wave output that is identical to AC power supplied by your utility. Expect trouble-free true sine wave electricity for televisions, audio systems, variable speed tools, and more
  • Removable display can be mounted remotely for control and monitoring (#808-1800)
  • Unique DC terminals offer 180-degree connections for easy installation in tight places
  • Efficient powersave mode draws only 1.5 watts under no load condition
  • Two year warranty
  • Schuko AC receptacle
  • Remote interface kit for remote mounting of display module
  • Models available with Schuko, hardwire, or hardwire with transfer switch

Protection Features

  • Over temperature shutdown and automatic overload protection
  • Over voltage and under-voltage protection
  • Short circuit and AC backfeed protection

Regulatory Approvals

  • E-mark, CE Mark – Low Voltage Directive 2006/95/EC (EN 50178:1997)
  • EMC Directive 2004/108/EC (EN 61000-6-1:2007 & EN 61000-6-3:2007)
  • Automotive EMC Directive 2004/104/EC as amended by 2005/83/EC

Accessories

Remote interface panel Part# 808-1800
This interface panel allows standard Xantrex Sine Wave Inverter LCD Display Panel to be mounted remotely in the location of your choice. Comes with 30’ (10m) of telephone cable.

  • Standard Telephone Jack Outlet for connection to LCD panel
  • LED indicator for basic status monitoring
  • ON/Bypass switch
  • Mounts into the existing cavity in place of Standard LCD Panel
  • No special wiring required
  • Internal filtering reduces interference generated along cable, improving overall performance

Specifications



Model Part nr             Output                       Input AC Output
PROsine 1000i 806-1074               230v                          12V Hardwire w/ transfer relay
PROsine 1800i 806-1870               230v                          12V SCHUKO
PROsine 1800i 806-1874               230v                          12V Hardwire w/ transfer relay

For further general and electrical specifications please download the data sheet
