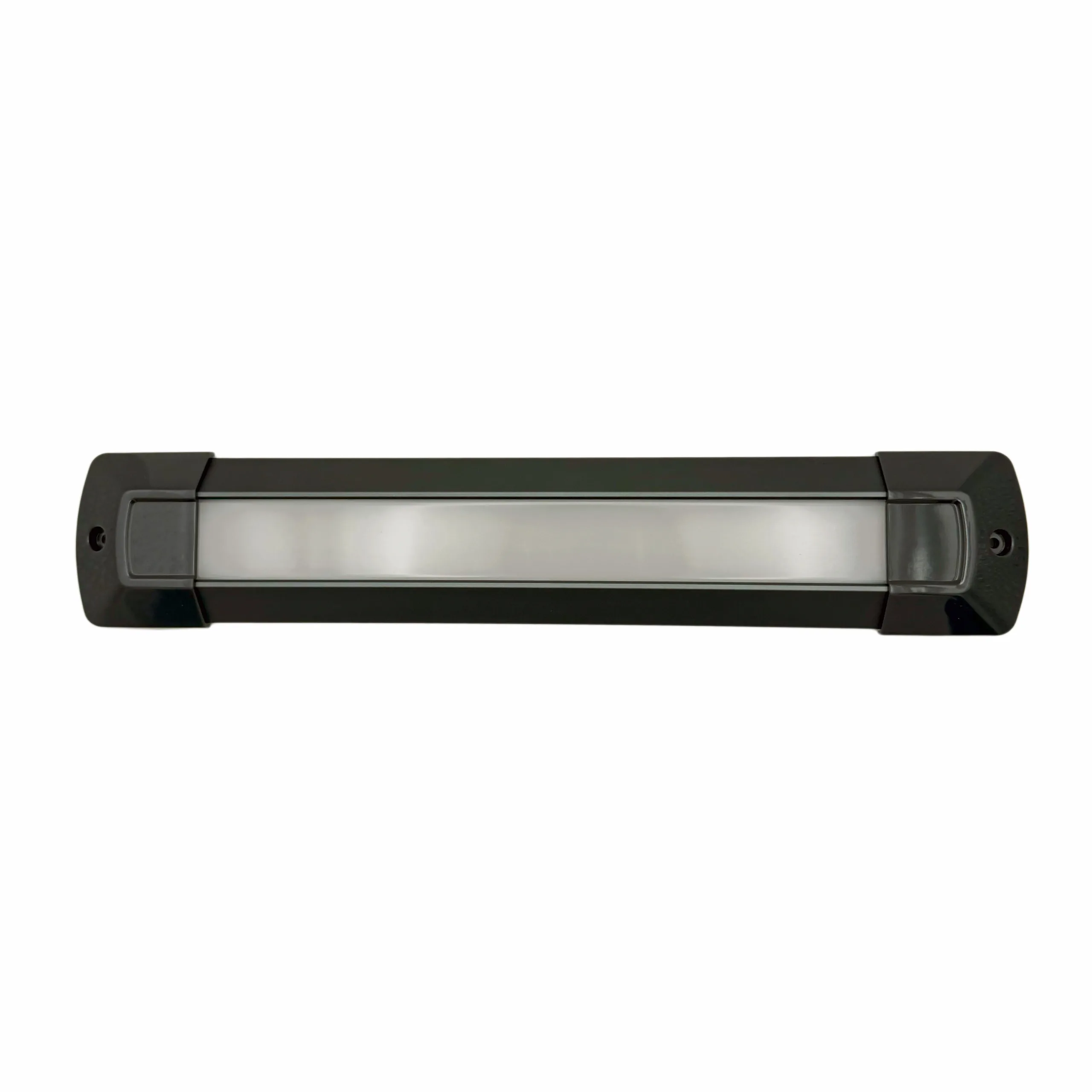

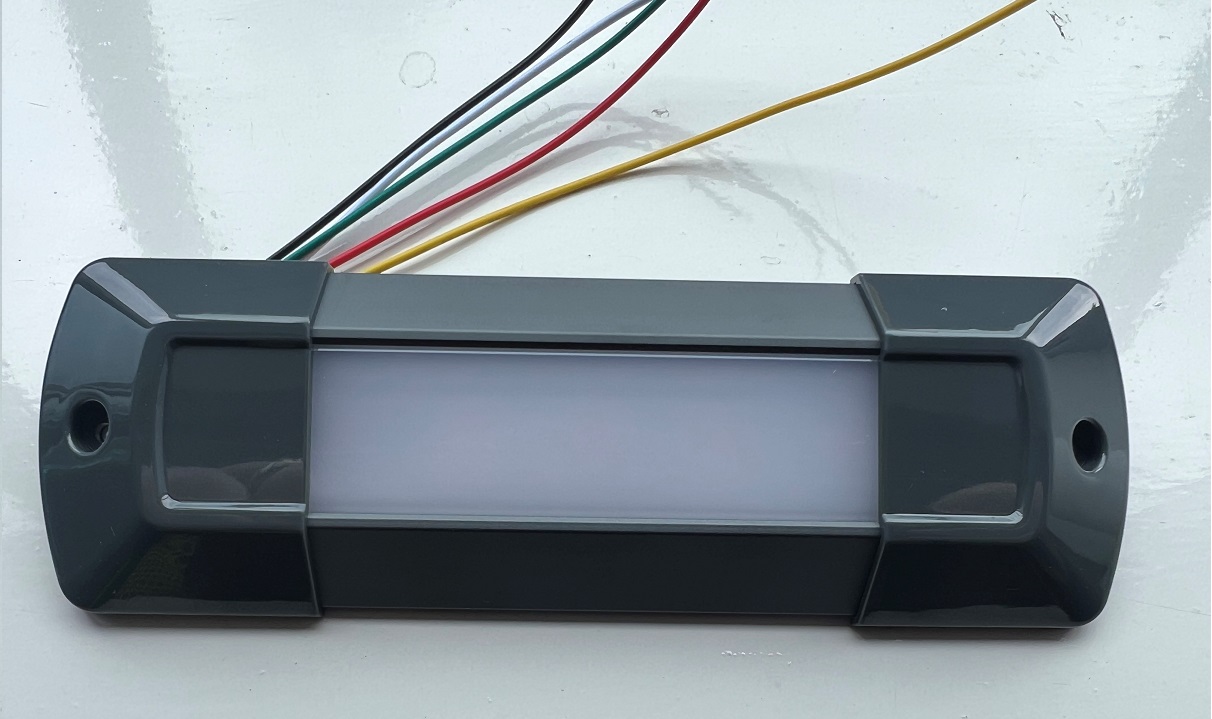

173mm or 300mm red/white or NEW white interior light hard wired 110 Series – Grey Housing

The 110 series interior light with grey housing exclusively from EVP.

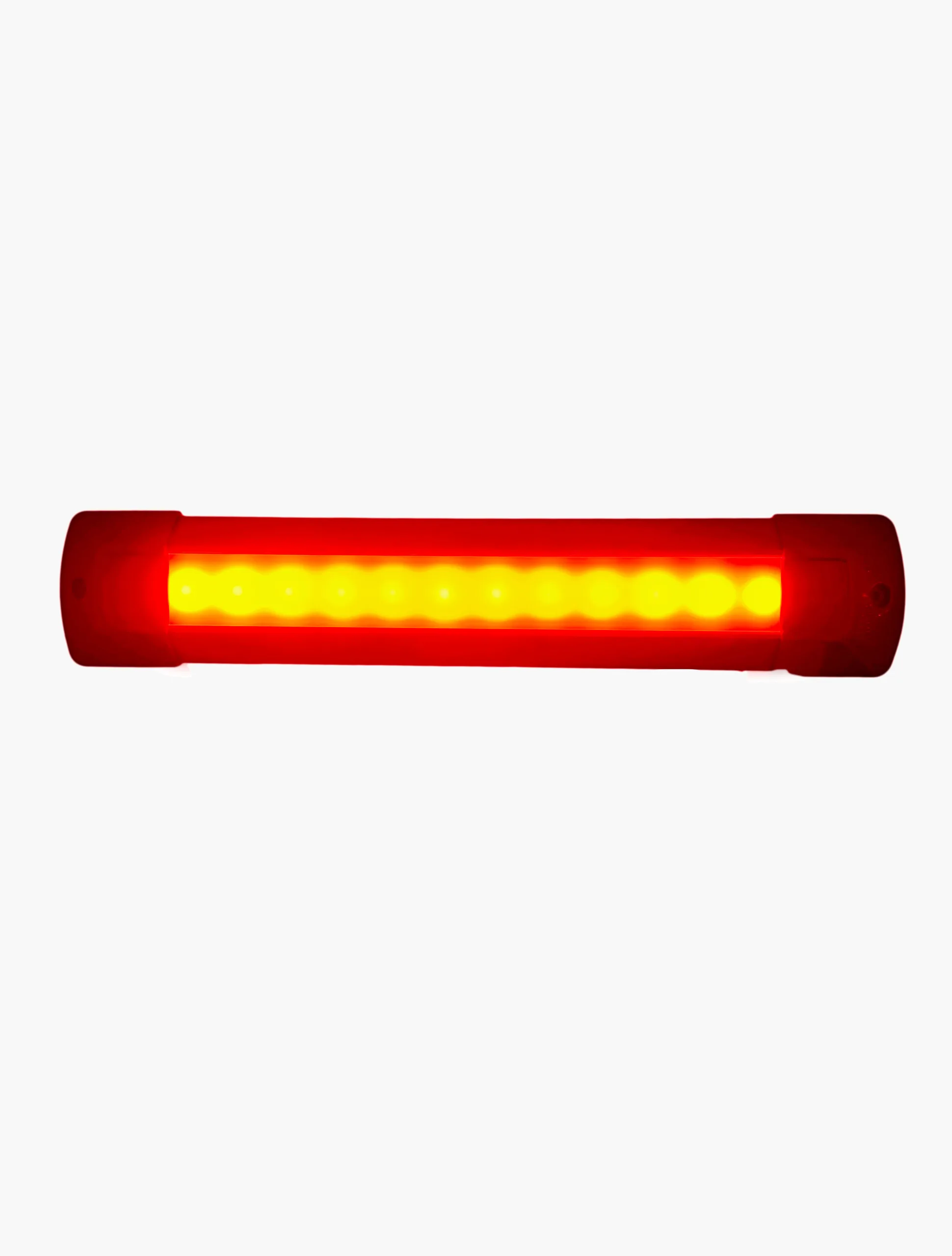

With the none switch version, this amazingly versatile light offers a dual colour red/white or white colour offering of 5700K~6500K output. With the none switch version this makes the light controllable from an external controller.

As standard the unit has a secondary positive input which can be connected to a door switch etc. Once power to this input is switched off, the white light will stay on for a 15 second period and then switch off like a curtesy light.

Hard Wire Dual Colour Red/White 173mm long = EVP-110A-RW-01G

Hard Wire White Only 173mm long = EVP-110A-01W-G

Hard Wire Dual Colour Red/White 300mm long = EVP-110B-RW-01G

Hard Wire White Only 300mm long = EVP110B-01W-G

Description

Features:

  • 10-30v
  • IP67
  • 10.8w (54 LEDs x 0.2w)
  • ADC12 Aluminum alloy housing with plastic cover
  • Dimensions: 300×56.9×15.1
  • Dual Colours available
  • 5 Year Warranty
  • Available colours: red, white, blue



Touch button functions

1. Single colour: On/30% of Brightness/70% of Brightness/100% of Brightness/OFF.

2. Dual colours: White/red, white/blue

A. Short press of the button: To change colours: ON/white/red/OFF, ON/white/blue/OFF, ON/white/red/blue/OFF;

B. Long press of the button: To change brightness infinite (Stepless dimming: 1%-100%).



Dimensions:













Additional information

Weight 0.3 kg
Dimensions 5 × 5 × 5 cm
Colour

Red+White, White

Size

173mm, 300mm

Touch button functions

Features:

  • 10-30v
  • IP67
  • 10.8w (54 LEDs x 0.2w)
  • ADC12 Aluminum alloy housing with plastic cover
  • Dimensions: 300×56.9×15.1
  • Dual Colours available
  • 5 Year Warranty
  • Available colours: red, white, blue



Touch button functions

1. Single colour: On/30% of Brightness/70% of Brightness/100% of Brightness/OFF.

2. Dual colours: White/red, white/blue

A. Short press of the button: To change colours: ON/white/red/OFF, ON/white/blue/OFF, ON/white/red/blue/OFF;

B. Long press of the button: To change brightness infinite (Stepless dimming: 1%-100%).



Dimensions:
